XF2026D

CPU

Intel® Xeon® 4-Core Processor

RAM

32GB DDR4 ECC DIMM (Max 128GB)

Ultra Performance

1,800K IOPS

Active-Active Architecture

Dual-Active Design

The Best Entry-Level All-Flash Array Data Storage

AFA

Native All-Flash Array

Ultra-high Performance

Amazing stability can provide maximum 1.2 million IOPS under 1ms latency

QSRAID

Unique SSD Algorithm

QSLife

Distinct SSD Monitoring, 100% Accuracy of SSD Utilization Ratio

99.9999% Availability

High Availability, No Single Point-of-Failure

Cost-effective

Most Affordable All-Flash Array

Built for All-Flash Storage

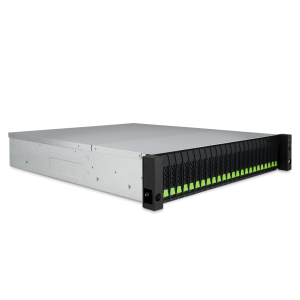

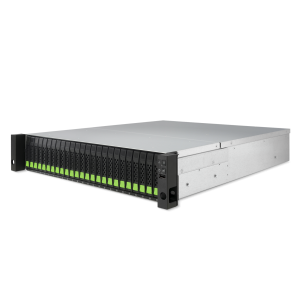

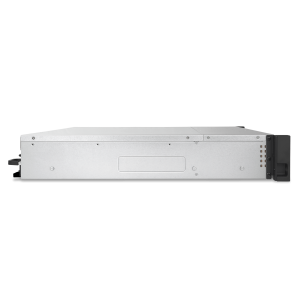

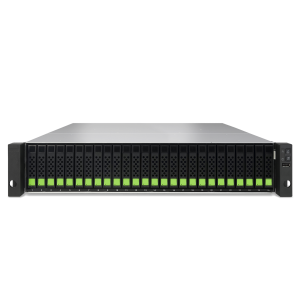

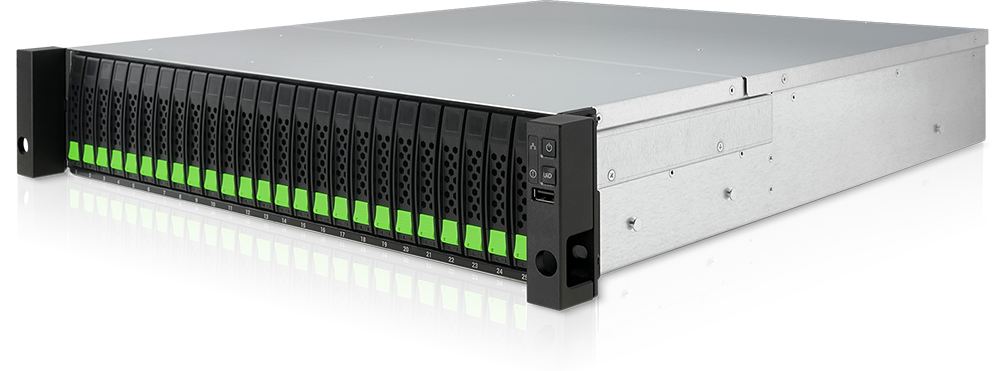

QSAN XF2026 model (2.5” 2U 26-bay) is the industry’s first high-density all flash/low power SAN storage. It has accelerated performance, consolidated space, and two more storage bays (up to 8% more capacity) than the popular 2U 24-bay products available on the market. This can further lower the cost per TB, minimize IT rack space, and generate a smaller and greener footprint.

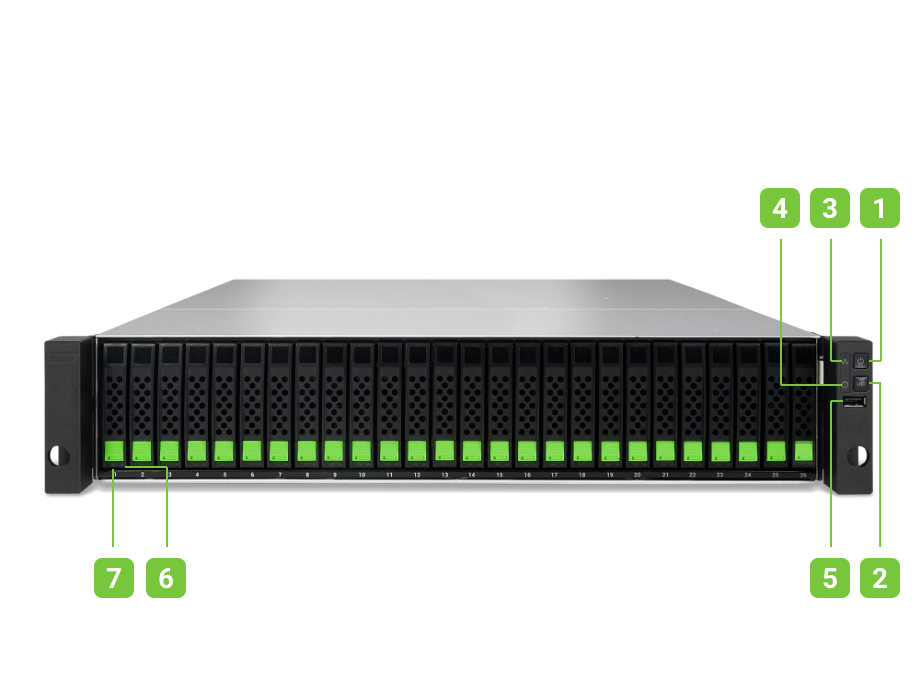

  1. Power Button/LED Indicator for Power Status
  2. Unique Identifier (UID) Button/LED Indicator
  3. System Access LED Indicator
  4. System Status LED Indicator
  5. USB 2.0 Port
  6. Disk Drive Power LED Indicator
  7. Disk Drive Status LED Indicator
  8. Power Supply Unit – PSU Indicator and Beep Off Button
  9. Additional Host Card Expansion Slot

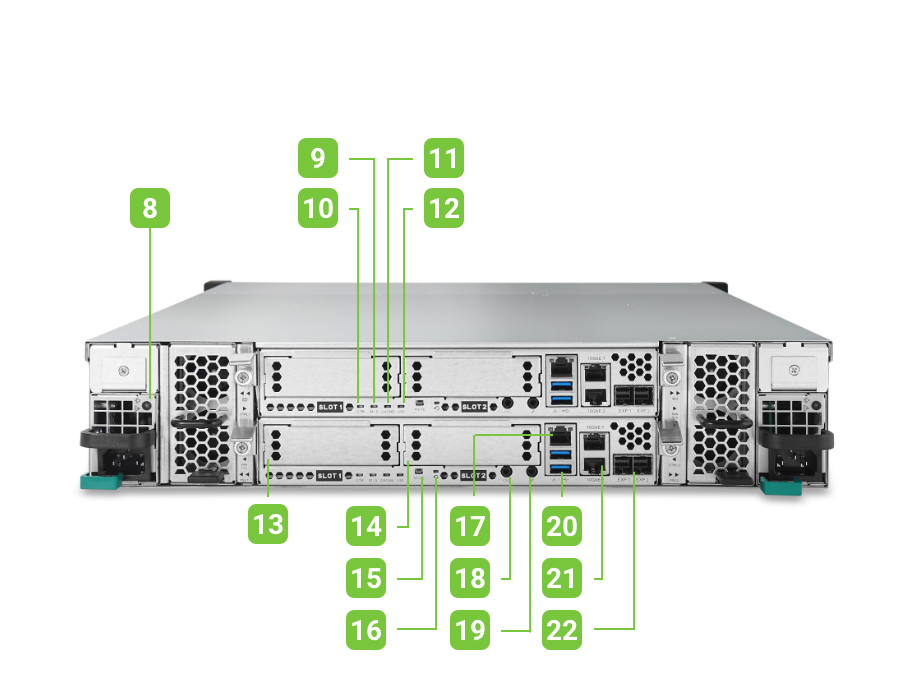

8. Power Supply Unit – PSU Indicator and Beep Off Button

9. Controller Status LED

10. Master / Slave LED (only for dual controllers)

11. Dirty Cache LED

12. UID (Unique Identifier) LED

13. Host Card Slot 1 (host card is an optional part)

14. Host Card Slot 2 (host card is an optional part)

15. Buzzer Mute Button

16. Reset to Factory Default Button

17. Management Port

18. Console Port

19. Service Port

20. USB Port

21. 10GbE iSCSI Port

22. 12Gb/s SAS Wide Port

Active-Active

Dual-Active Design

The XCubeFAS series features a Dual-Active controller architecture. Both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache-hit ratio which ensures there is no wasted resource in the system.

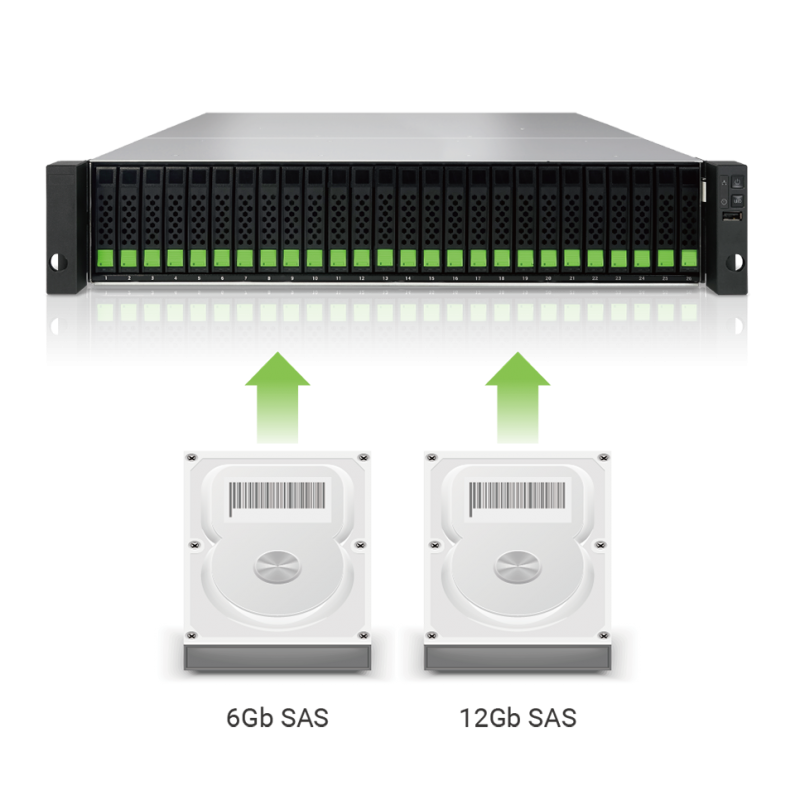

Fastest 12Gb SAS 3.0

Latest 12Gb SAS 3.0 Controller

12Gb SAS 3.0 is the latest and fastest drive interface available. It doubles the data transfer rate of SAS 2.0 (6Gb), while remaining backward compatible with 6Gb SAS 2.0 drives. The benefit is that you have the flexibility to purchase less expensive 6Gb SAS drives for initial installation or leverage investment of your existing 6Gb SAS drives and have a peace of mind knowing you can migrate to 12Gb SAS 3.0 by purchasing only new drives.
