QSAN Overview
XCubeSAN 3300 & 5300 Series
Optimize Price and Performance for SMB Workloads
Native Hybrid Flash Expert
The XCubeSAN 3300 series is a hybrid flash storage system that provides affordable performance, capacity, and operational simplicity. Start small and grow as needed with any combination of SSDs, high-performance enterprise SAS HDDs, or low-cost nearline SAS HDDs. Continuing from the previous generation, our XCubeSAN series arrays are the systems of choice for many due to their outstanding performance and reliability.
Proven Simplicity - "Set and Forget" Data Services
XEVO, its storage management system with intuitive GUI design, helps a lot to save your time deploying the storage. XEVO also delivers enterprise storage features including complete RAID level protection, RAID EE with fast rebuild, thin provisioning, SSD cache, auto tiering, and more. With the help of an intuitive dashboard and reporting system, managers can analyze business usage and monitor storage status in real time.
High Availability and Enterprise Reliability
The XCubeSAN series is a proven 99.999% high availability SAN storage system with fully redundancy in modular design. The dual-active architecture and automatic failover / failback mechanism, coupled with cache-to-flash technology, enable the system to withstand critical situations.

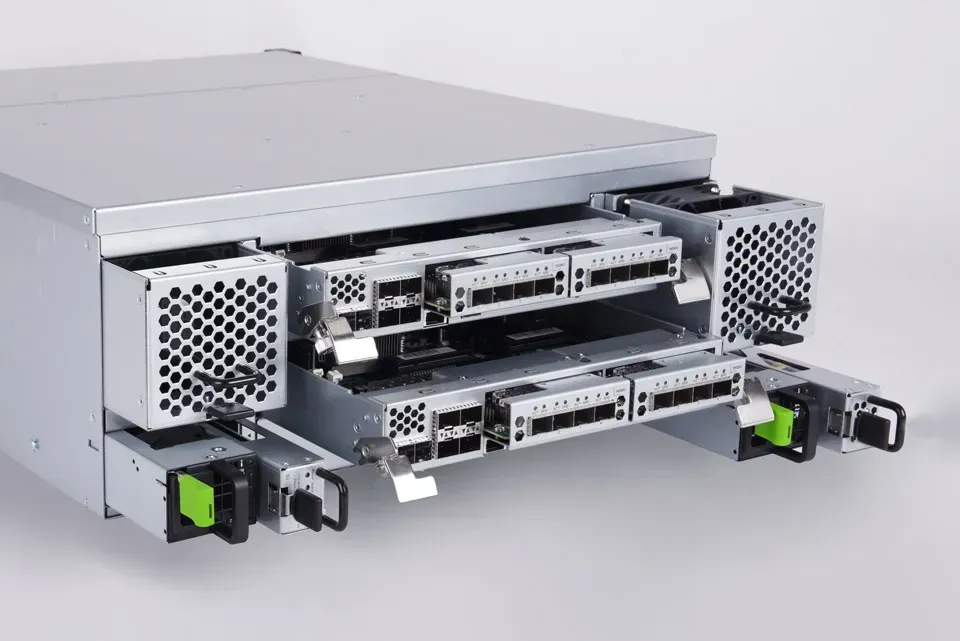

Flexible I/O Modules and Scale-up Capacity as Needed
Each XS3300 controller has two host card slots that can be configured as iSCSI, Fibre Channel, or a mix of both besides built-in 4-port 10 GbE iSCSI (SFP+). As a result, the series offers great flexibility with built-in 8-port 10 GbE iSCSI and up to 24 host ports in a dual-controller system. In addition, the system provides massive scale-up capabilities by connecting XCubeDAS or 3rd-party expansion units for future data growth.
Secure Data and Secure Management
Supporting SED (Self-Encrypting Drives) will keep your sensitive data safe even the drives are lost, stolen or misplaced. Additionally, RBAC (Role-Based Access Control) helps to prevent the unauthorized access to your data. Even more, all management communication is secured over https.
Powerful Hybrid Storage in Entry Level
QSAN is committed to providing leading storage technologies to businesses of all sizes. Continuing the strengths of the XCubeSAN product line, it provides an outstanding storage experience with astonishingly high IOPS and throughput, and caters to almost performance-demanding applications. Combine with traditional capacity HDDs or modern faster SSDs to plan your budget more easily and enjoy enterprise-class high-performance hybrid storage.
Our Featured Products
QSAN XS33 Series
The QSAN XS33 Series is purpose-built to meet the growing demands of businesses requiring a balance between performance, capacity, and reliability. As part of QSAN’s trusted XS platform, the XS33 Series is optimized for cost-efficient storage solutions without compromising on advanced features.
Models in the XS33 Series:
XS3312 – 12-Bay Storage Array
XS3316 – 16-Bay Storage Array
XS3324 – 24-Bay Storage Array
XS3326 – 26-Bay Storage Array
QSAN XS53 Series
The QSAN XS53 Series represents the next generation of high-performance storage systems tailored for enterprise-level workloads and mission-critical environments. Designed with cutting-edge hardware, full redundancy, and intelligent software features, the XS53 Series ensures maximum uptime, speed, and scalability for modern data infrastructures.
Models in the XS53 Series:
XS5312 – 12-Bay Enterprise Storage
XS5316 – 16-Bay High-Density Storage
XS5324 – 24-Bay Scalable Storage
XS5326 – 26-Bay Ultra-High-Capacity Storage
XS3300 Series Models
XS5300 Series Models
Best Hybrid Storage in Applications
QSAN is committed to providing leading storage technologies to businesses of all sizes. Continuing the strengths of the XCubeSAN product line, it provides an outstanding storage experience with astonishingly high IOPS and throughput, and caters to almost performance-demanding applications. Combine with traditional capacity HDDs or modern faster SSDs to plan your budget more easily and enjoy enterprise-class high-performance hybrid storage.
Smart Storage for Growing Businesses
The QSAN XS33 Series offers reliable, scalable storage for small to mid-sized businesses. With flexible access, ample
capacity, and key data protection, it’s ideal for backup, file sharing, and light virtualization.
Features (XS3312 ):
12-bay form factor in a 2U chassis
Single/dual controller options
Supports up to 240TB raw capacity
Ideal for file sharing, backup, and small virtualization tasks
Features( XS3316) :
16 SATA HDD/SSD drive bays
Excellent balance of performance and storage density
RAID 0,1,5,6,10 support
Up to 64GB memory (model-dependent)
Features( XS 3324) :
16 SATA HDD/SSD drive bays
Excellent balance of performance and storage density
RAID 0,1,5,6,10 support
Up to 64GB memory (model-dependent)
Features( XS 3326) :
16 SATA HDD/SSD drive bays
Excellent balance of performance and storage density
RAID 0,1,5,6,10 support
Up to 64GB memory (model-dependent)
Ultimate Enterprise Performance
The QSAN XS53 Series offers high performance and reliability for enterprise workloads. With dual-controller redundancy, fast 10/25GbE ports, and smart storage features, it ensures nonstop operation for virtualization, big data, and critical backups.
Features (XS 5312 ):
Dual-controller architecture
12 x 3.5″/2.5″ hot-swappable bays
Up to 128GB DDR4 RAM
High-speed 10/25GbE support
Features( XS5316) :
16-bay system with SAS/SATA drive support
Built-in cache and tiering optimization
Multi-host connectivity with FC and iSCSI
Features( XS5324 ) :
24 bays in a 4U chassis
Virtualization & containerization ready
VMware, Hyper-V, Citrix certification
SSD cache and auto-tiering included
Features(XS5326 ) :
Supports 26 enterprise-grade drives
Max redundancy with dual controller, dual PSU, dual fan
Multi-node JBOD scalability
Real-time failover & replication
